Understanding Gate Valve Operation and Selection
Gate valves are essential components in many industries and play a crucial role in controlling fluid flow. There are many operation types, including rising stem, non-rising stem, and multi-turn. Rising stem valves offer greater visibility of the valve position while non-rising stem valves require less vertical space for installation. Multi-turn valves provide more precise control over flow rates.

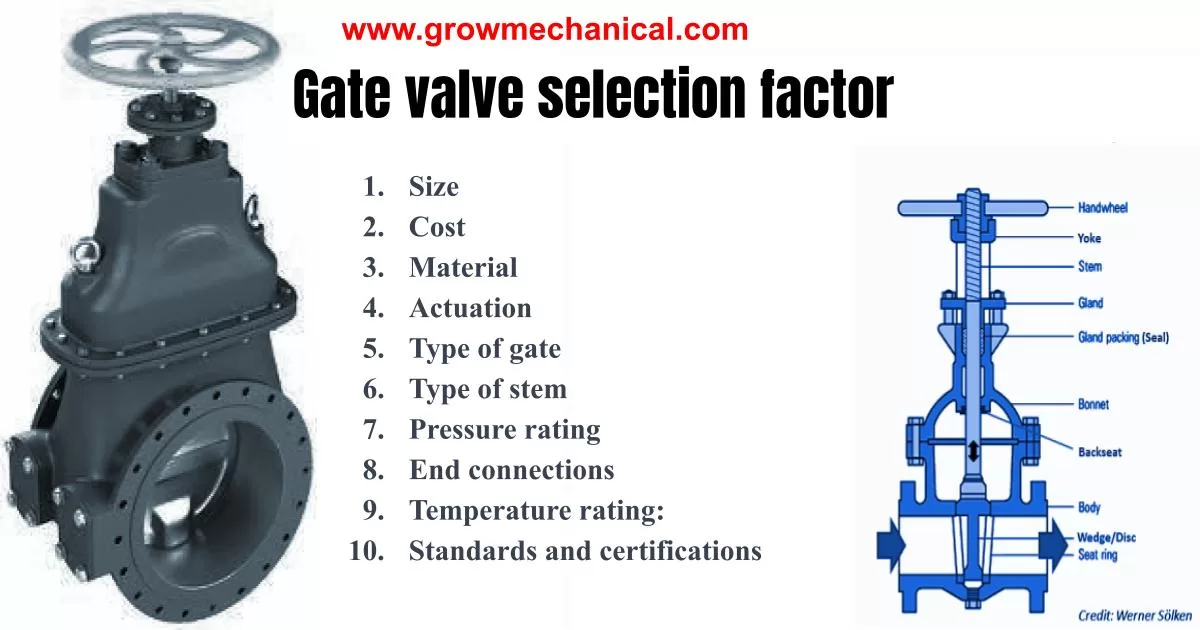

When selecting a gate valve, it’s important to consider factors such as application, pressure rating, temperature range, and media type. Material considerations also come into play, with options such as cast iron, carbon steel, stainless steel, bronze, and brass available. Each material has its own set of advantages and disadvantages depending on the specific industry needs.
Materials for Gate Valves
There are various materials available for gate valves, each with its own properties and benefits. Cast iron is a widely used material for gate valves due to its durability and affordability. Carbon steel offers strength and resistance to wear and tear, while stainless steel provides excellent corrosion resistance, making it ideal for harsh environments. Bronze is commonly used in seawater applications due to its resistance to saltwater corrosion. If you require a non-sparking valve or one that’s suitable for potable water, consider using brass. Choose your material based on the specific needs of your industry application and ensure it meets pressure and temperature requirements for optimal gate valve operation.
Common Applications and Maintenance Considerations for Gate Valves
Gate valves are commonly utilized in a variety of industries, including oil and gas, water treatment, power generation, and chemical processing. They are well-suited for on/off flow control applications and are known for their reliable shut-off capabilities. To keep gate valves operating efficiently, regular maintenance is necessary. This can include cleaning the valve internals, checking for leaks, inspecting sealing surfaces, and lubricating moving parts as needed. Additionally, it’s important to ensure that the valve is installed correctly and placed in the appropriate location for optimal operation.
Gate valve Operating Conditions
When selecting and designing a gate valve, it is crucial to pay attention to the operating conditions that the valve will be subjected to. Factors such as temperature, pressure, fluid viscosity, and flow rate can all affect the performance of the valve. It is important to choose a gate valve that is designed to withstand the specific operating conditions of your application. Gate valves come in materials like carbon steel, stainless steel, brass or bronze and can withstand a range of temperatures and pressures. Make sure you understand your application requirements and consult with an expert if necessary to select the best valve for optimal functionality and longevity.
Gate Valve Comparison with Other Types of Valves:
- Ball valves: Both gate valves and ball valves are used for isolation applications, but gate valves are preferred for high-pressure and high-temperature applications, while ball valves are preferred for low-pressure and low-temperature applications.
- Globe valves: Globe valves are more expensive than gate valves, but they offer better control and can be used in throttling applications, while gate valves are limited to on/off applications.
- Butterfly valves: Butterfly valves are less expensive than gate valves, but they are limited to low-pressure applications and cannot withstand high temperatures or pressures like gate valves.
- Check valves: Check valves are used to prevent backflow in a pipeline and are not suitable for isolation applications like gate valves.
- In summary, gate valves are commonly used in industrial applications that require full flow with minimum pressure drop and tight shutoff. When selecting a gate valve, factors such as size, pressure rating, temperature rating, material, and end connections should be considered. Gate valves can be compared with other types of valves based on factors such as application, cost, control, pressure and temperature limits, and backflow prevention.
Terminology used for gate valve
- Valve sizing: The process of determining the appropriate size of a gate valve for a specific application based on flow rate, pressure, and other parameters.
- Body material: The type of material used to manufacture the valve body, such as cast iron, bronze, stainless steel, or carbon steel.
- Trim: The internal components of the valve that come into contact with the fluid being transported, including the gate, seat, and stem.
- Gate design: The shape and configuration of the gate, such as solid wedge, flexible wedge, or split wedge.
- Bonnet design: The type of bonnet used to enclose the stem and packing, such as bolted, welded, or threaded.
- Stem material: The type of material used to manufacture the stem, such as stainless steel, carbon steel, or bronze.
- Stem packing: The material used to seal the space between the stem and the bonnet, such as graphite or PTFE.
- End connections: The type of connections used to attach the valve to the pipeline, such as flanged, threaded, or welded.
- Operating mechanism: The mechanism used to operate the valve, such as handwheel, gearbox, or actuator.
- Face-to-face dimension: The distance between the two end connections of the valve, which determines its overall length.
- Pressure rating: The maximum pressure that the valve can withstand without leaking or failing.
- Temperature rating: The maximum temperature that the valve can withstand without losing its structural integrity or causing damage to the components.
- Bore size: The diameter of the flow path inside the valve, which determines the flow rate and the pressure drop.
- Flow coefficient: The measure of the valve’s ability to control the flow rate of a fluid.
- Cv factor: The flow coefficient that is specific to a given valve size, which is used to determine the flow rate for a given pressure drop.
- Seat design: The shape and configuration of the seat, which provides a sealing surface against which the gate or wedge rests when the valve is closed.
- Stem extension: A feature that allows the stem to be extended to accommodate different installation requirements.
- Backseat feature: A feature that allows the stem to be extended without exposing the packing to the fluid flow.
- Torque requirement: The amount of force required to operate the valve, which depends on the valve size, design, and operating conditions.
- Leakage class: A standard that defines the maximum allowable leakage rate for a valve, which depends on the application and the level of tightness required.
- The most commonly used US standard for gate valves is ASME B16.34 – Valves Flanged, Threaded, and Welding End, which specifies the requirements for gate valves, globe valves, and check valves in various materials, sizes, and pressure classes. This standard covers both cast and forged steel gate valves, as well as other types of valves.
Standard for gate valve
Standard that may be used for gate valves is API 600 – Steel Gate Valves – Flanged and Butt-welding Ends, which covers the design, materials, and testing requirements for steel gate valves for the petroleum and natural gas industries.
In addition to these standards, there may be other standards and codes that apply to specific applications or industries, such as the American Water Works Association (AWWA) standards for water and wastewater applications, or the National Fire Protection Association (NFPA) codes for fire protection systems. It is important to consult the appropriate standards and codes when selecting and installing gate valves to ensure that they meet the required performance and safety requirements.
Gate valve material list
The selection of gate valve materials depends on the specific application and service conditions, including factors such as fluid type, pressure, temperature, and flow rate. Here are 20 commonly used materials for gate valves and their associated service applications:
- Carbon Steel – suitable for use with water, steam, gas, and other non-corrosive fluids at moderate temperatures and pressures
- Stainless Steel – suitable for use with corrosive fluids and high-temperature applications, including chemicals, petrochemicals, and oil and gas production
- Bronze – suitable for use with seawater, brine, and other corrosive fluids at moderate temperatures and pressures
- Cast Iron – suitable for use with water, steam, and other non-corrosive fluids at low to moderate temperatures and pressures
- Monel – suitable for use with corrosive fluids and high-temperature applications, including seawater, acids, and alkalis
- Inconel – suitable for use with corrosive fluids and high-temperature applications, including acids, chemicals, and power generation
- Hastelloy – suitable for use with corrosive fluids and high-temperature applications, including acids, chemicals, and nuclear power
- Titanium – suitable for use with seawater, brine, and other corrosive fluids at high temperatures and pressures
- Aluminum Bronze – suitable for use with seawater, brine, and other corrosive fluids at moderate to high temperatures and pressures
- Duplex Stainless Steel – suitable for use with corrosive fluids and high-temperature applications, including offshore oil and gas production and chemical processing
- Super Duplex Stainless Steel – suitable for use with corrosive fluids and high-pressure applications, including offshore oil and gas production and chemical processing
- Nickel – suitable for use with corrosive fluids and high-temperature applications, including chemical processing and nuclear power
- Zirconium – suitable for use with corrosive fluids and high-temperature applications, including nuclear power and chemical processing
- PVC – suitable for use with water, acids, alkalis, and other non-corrosive fluids at low temperatures and pressures
- CPVC – suitable for use with water, acids, alkalis, and other non-corrosive fluids at moderate temperatures and pressures
- PTFE – suitable for use with corrosive fluids and high-temperature applications, including chemicals and pharmaceuticals
- Ceramic – suitable for use with abrasive and corrosive fluids, including slurries and acids
- Graphite – suitable for use with high-temperature fluids, including steam and chemicals
- Nitrile Rubber – suitable for use with water, oil, and other non-corrosive fluids at low to moderate temperatures and pressures
- EPDM Rubber – suitable for use with water, steam, and other non-corrosive fluids at low to moderate temperatures and pressures
- The Benefits of Properly Selecting and Maintaining Gate Valves
Proper selection and maintenance of gate valves can benefit your industry in several ways. By selecting the right valve for your specific needs, you can improve efficiency and reduce maintenance costs in the long run. Additionally, regular maintenance of gate valves ensures that they continue to operate reliably over time, reducing the risk of costly downtime due to unexpected failures. Gate valve operation is critical to many industrial applications, so it’s important to choose materials that are compatible with your specific application to ensure long-term success. Overall, taking the time to properly select and maintain gate valves can lead to increased productivity, improved safety, and reduced costs for your facility.
Choosing a Trusted Partner for Your Gate Valve Needs
When it comes to selecting the right gate valve for your industry, it’s important to choose a trusted partner that can provide expert guidance and support. Look for a supplier with extensive experience and knowledge of the gate valve operation and materials used in your specific industry. Additionally, consider their reputation for quality and reliability in delivering products on time and within budget. Your chosen partner should also offer comprehensive maintenance and support services to ensure that your valves continue to operate at peak performance levels over the long term. By choosing a trusted supplier for your gate valve needs, you can rest assured that your industrial operations will remain efficient, safe, and productive.
