A Centrifugal Compressor Calculation Sheet is a structured document used by engineers to design, analyze, and optimize centrifugal compressor performance. It includes essential calculations to ensure efficiency, safety, and reliability in various industrial applications such as oil & gas, power plants, and refrigeration.
Key Components of the Calculation Sheet
- Basic Parameters:
- Inlet conditions (pressure, temperature, gas composition)
- Required discharge pressure & flow rate
- Rotational speed (RPM)
- Thermodynamic Calculations:
- Polytropic or isentropic efficiency
- Compression ratio
- Work input (polytropic head)
- Power consumption (kW or HP)
- Aerodynamic Design:
- Impeller diameter & blade angles
- Diffuser & volute sizing
- Mach number & flow coefficient
- Mechanical Design Checks:
- Shaft strength & critical speed analysis
- Bearing selection (radial & thrust)
- Vibration & stress analysis
- Performance Curves:
- Pressure ratio vs. flow rate
- Efficiency maps
- Surge & choke limits
Importance of the Calculation Sheet
- Ensures compliance with industry standards (API 617, ASME)
- Helps in troubleshooting operational issues
- Optimizes energy efficiency & reduces maintenance costs
Software & Tools Used
Engineers often use software like ANSYS CFX, Aspen HYSYS, or AFT Arrow for simulations, but manual calculations in Excel or MATLAB remain crucial for validation.
Conclusion
A well-prepared Centrifugal Compressor Calculation Sheet is vital for accurate design and smooth operation. It integrates thermodynamics, fluid dynamics, and mechanical engineering principles to deliver reliable compression solutions.

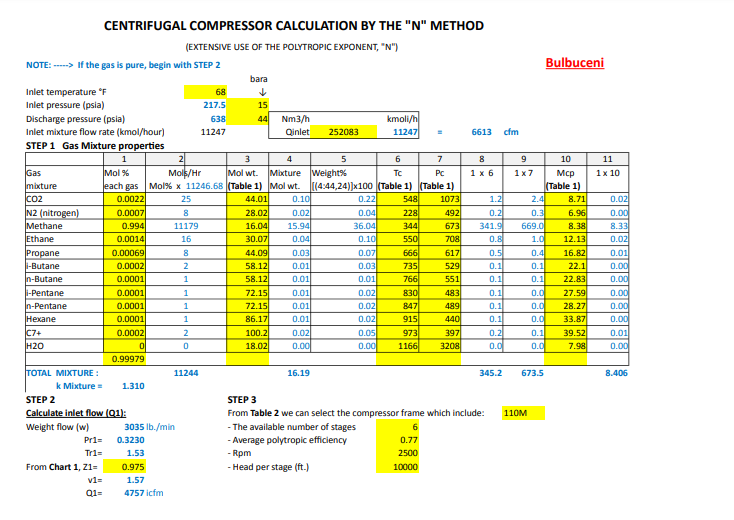

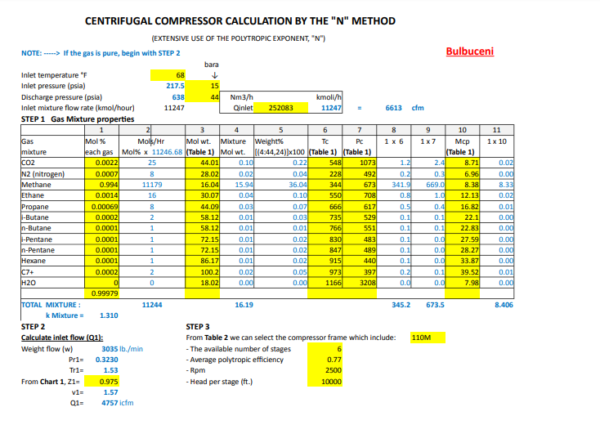

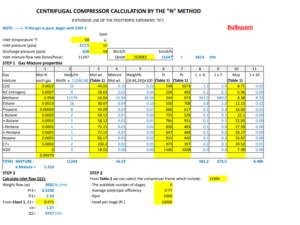

Centrifugal Compressor Calculation Sheet
